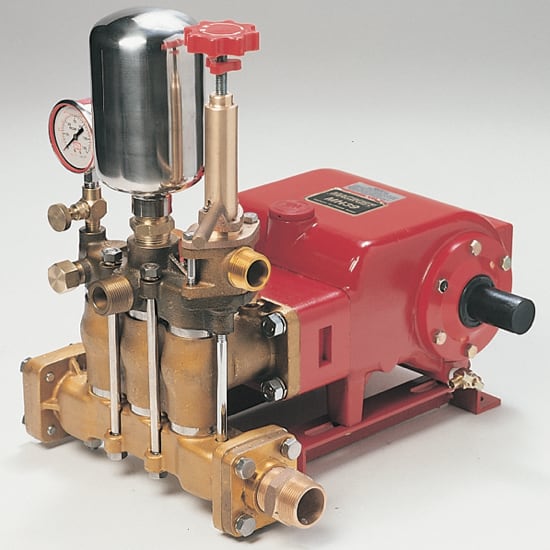

MH39 Belt Driven High Volume High Pressure Pump

MH39 Belt Driven High Volume High Pressure Pump

The MH39 belt driven triplex plunger pumps offer heavy duty construction for demanding environments. High volume slow speed operation provides smooth vibration free performance. Precision polished stainless steel plungers with stainless steel interchangeable valves. Bronze manifold with stainless steel and brass wetted parts. Large bronze connecting rods for superior strength and long life. Diecast aluminum crankcase with heavy duty ball bearings. Double extended crankshaft can be driven on either side. Oil drain valve with extension hose for easy oil changes.

Affordable replacement parts guarantee long lasting, cost efficient operation.

All MH39 pumps are supplied with stainless steel pulsation dampener, glycerine filled pressure gauge, adjustable pressure regulating valve, pulley and mounting rails.

View Brochure

Part #MH39

Specifications

Max Pressure
600 psi
Max RPM
600
Max Volume
20.5 gpm
Weight
115 lbs

Stock, usually ships in 1-2 days
