X Series

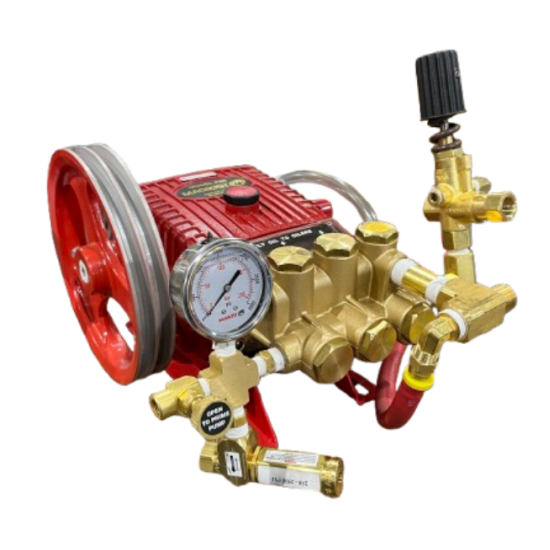

X20 Pump with Unloader

The X20 belt driven triplex ceramic plunger pump offers smooth vibration free performance. Precision polished ceramic plungers with stainless steel interchangeable valves. Bronze manifold with stainless steel and brass wetted parts. Large bronze connecting rods for superior strength and long life. Diecast aluminum crankcase with oversize ball bearings. Double extended crankshaft can be driven on either side. Internally ported self lubricating seals. Oil drain valve with extension hose for easy oil changes.

Affordable replacement parts guarantee long lasting, cost efficient operation.

All X20 pumps are supplied with glycerine filled pressure gauge, adjustable pressure regulating valve, pulley and mounting rails.

"A" option includes 7500B brass forged unloader valve mounted with bypass return hose to suction inlet of pump.

View Brochure

Part #X20A

Specifications

Max Pressure
2000 psi
Max Volume
4 gpm
Max RPM
900
Weight
25 lbs

Stock, usually ships in 1-2 days
