Pressure Regulating Valves

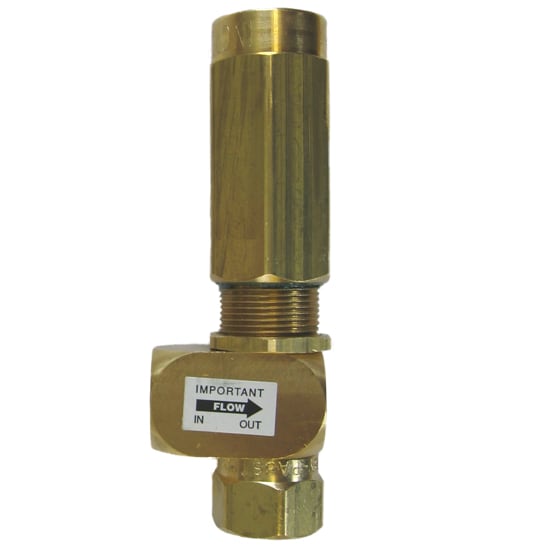

Pressure Regulating Valve, Max 2000 PSI and 10 GPM
Balanced pressure regulator valve is designed for car wash or pressure washing applications where a weep gun is used or the pump bypass can be returned to the supply tank. Can also be used as a pressure safety relief valve. Brass body with stainless steel piston and seat. Off line mount.
Specifications
- Bypass Connection
- 3/8" fnpt
- Inlet Connection
- 3/8" fnpt
- Max Flow
- 10 gpm
- Max Pressure
- 2000 psi
Stock, usually ships in 1-2 days
